Klingspor SM 611H Abrasive Mop Wheel

Klingspor SM 611H Abrasive Mop Wheel

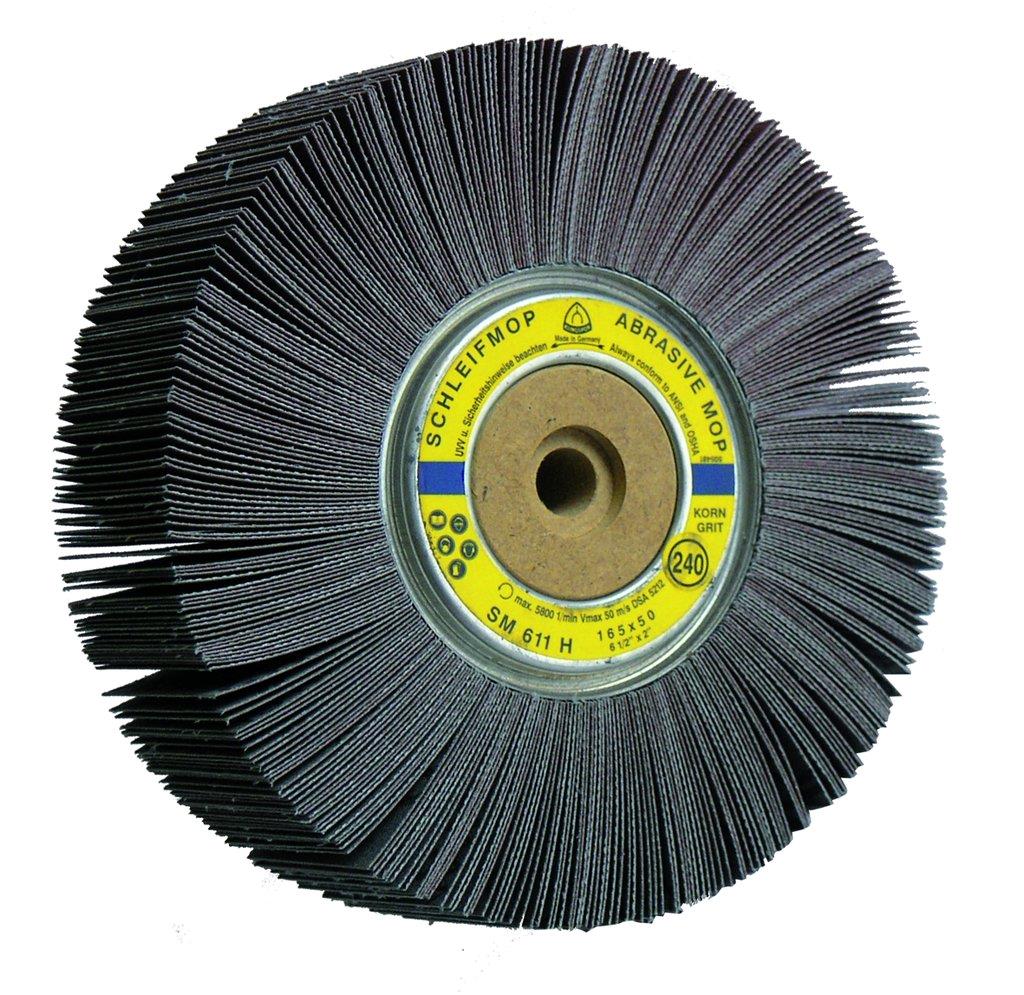

Mop wheel (flap wheel) with a wooden core and a 13 mm bore for fast mounting. Leaves an even scratch pattern on wood, metals, plastic, paint, varnish and filler.

Abrasives Mop wheels (flap wheels)

The wooden core means you can use it without the SMD 612 mounting plate, and the bore is relatively easy to enlarge. The wheel adapts to workpiece contours, and the flaps continuously expose fresh, unused grit as they wear.

Klingspor developed the abrasive mop wheel over 40 years ago, and it is now widely used in surface finishing. Grinding flaps coated with aluminium oxide are arranged radially in a fan shape and anchored in a resin core. This gives very soft, comfortable grinding that adapts to the workpiece contours and produces a very smooth surface finish.

Technical data sheet

More downloads

Klingspor Catalogue 2026/2027 Klingspor oSa Certificate (Safety) Klingspor Corporate Profile

Need a price or a second opinion?

Tell us the quantity and what you're using it on. We'll reply with price, availability and anything you should know.

Ask about this product

Specifications

Grain Aluminium oxide
Bonding agent Resin
Suitable for Wood, metals, plastic, paint, varnish, filler
Suitable equipment Floor Standing Grinder, Flexible Shaft Grinder

Grit sizes

FEPA P-grades: the lower the number, the coarser the grit.

  • P40
  • P60
  • P80
  • P100
  • P120
  • P150
  • P180
  • P220
  • P240

Guides

Sizes and details

Articles and sizes

Diameter x Width in mm Grit Max. RPM Pieces / box
165 x 25 60 5,800 5
165 x 25 80 5,800 5
165 x 25 100 5,800 5
165 x 25 120 5,800 5
165 x 25 150 5,800 5
165 x 25 180 5,800 5
165 x 25 220 5,800 5
