Chemical Anchor CA1400 fixes anchoring rods, studs, reinforcing bars, threaded collars and profiles tension-free, in both hollow and solid materials.
Soudal Chemical Anchor CA1400
Two-component anchoring resin for structural and high-load fixings in solid and hollow materials. Handles loads up to 1400 kg and can be loaded after 30 minutes.
The data sheet has the full substrate list, limits and test ratings. Not sure it fits your job? Ask us.
More downloads
Need a price or a second opinion?
Tell us the quantity and what you're using it on. We'll reply with price, availability and anything you should know.
Ask about this productSpecifications
| Packaging | 280 ml cartridges, 12 cartridges / carton |
|---|---|
| Colour | Grey |
Features and applications
Features
- Very strong anchoring for loads up to 1400 kg
- Very fast setting: load after 30 minutes
- Withstands temperatures up to 80°C
- Easy to apply
- Can be applied with a standard caulking gun
- Fast cure and styrene-free (low odour)
- Works in wet or damp drill holes
- Reuse the cartridge by changing the static mixer (nozzle)
- Watertight and impermeable fixing
- Indoor emission level (VOC) A+ (very low risk)
Applications
- Anchoring metal rods, threaded bolts and metal profiles in solid stone, brick and concrete, and in hollow stone and concrete
- Installing hinges, banisters, shutters and fences, even close to edges
- Repair mortar for damaged concrete
Application instructions
Screw the mixing nozzle onto the cartridge and apply with a normal high-performance cartridge gun. Apply at 5°C or above. Discard the first 5 cm of product: it must be an even grey, which shows the components are mixed correctly. Remove the nozzle and reseal after use.
Installation depends on the structure, and some need sleeves. Contact us for help with your fixing.
Video
Related products
Soudal Soudapack WST
One-component, solvent-free sealant that swells with water to stop leaks inside pipe and cable penetrations. It never cures, so you can pass extra cables or pipes through at any time.

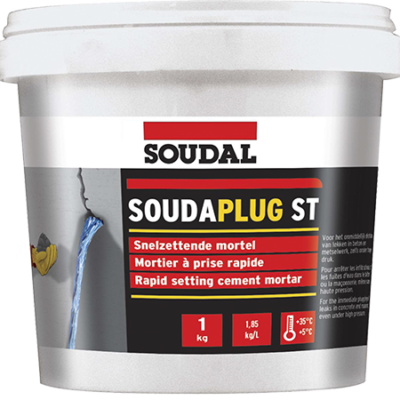

Soudal Soudaplug ST
